Dynamic Rocker Back

Seating Dynamics Dynamic Rocker Back Interface

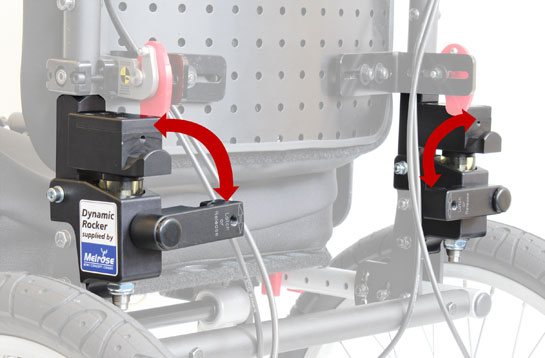

The Rocker Back by Seating Dynamics is installed between the seat and back of a wheelchair and provides movement of the back to absorb forces and assist the client back to upright.

This movement can protect both the client from injury and the seating system and mobility base from breakage. This movement can also reduce active extension, maintain posture, and provide movement to reduce agitation, increase alertness, and provide sensory input. Movement can also facilitate functional activities. Finally, movement against resistance in a limited range can increase trunk and head control.

The resistance can be changed using one of four provided elastomers. The client should be able to move the back, yet still return to upright. These will also need to be replaced due to wear and tear and should be checked every 6-12 months.

Standard Specifications

  • Width 37mm
  • Height 15Omm
  • Lightweight, it only weighs 2.3 kg
  • Maximum travel 1Oº
  • Maximum user weight over 1OO kg
  • 4 pairs of colour coded Elastomer Impact Absorbers
    • Yellow - Soft
    • Clear - Medium (installed)
    • Blue - Firm
    • Green - Extra Firm
